Model Railroad Electrical Safety: Protecting Your Layout, Equipment and Home

• Use a properly grounded household outlet in good condition, and have questionable wiring inspected by a licensed electrician.
• Protect layout wiring with correctly sized circuit breakers or fuses, and use transient voltage suppression where appropriate for sensitive electronics.
• Do not leave smoke-equipped locomotives idling with full track power in a LionChief or command environment.
• Use appropriately sized, labeled and securely terminated wire, with no exposed conductors or damaged insulation.
• Disconnect power before maintenance, never leave an energized layout unattended and investigate heat, odors, buzzing or arcing immediately.

Model railroads bring household line voltage, transformers, low-voltage wiring and increasingly sophisticated electronics into one system. Safe operation begins before the first train moves. The household outlet serving the layout should be a properly installed, grounded three-prong receptacle in good condition. Never defeat the grounding connection or use an adapter that removes it. Loose plugs, cracked receptacles, discoloration, heat or intermittent power are reasons to stop and have the circuit inspected by a licensed electrician.

A layout should not overload a household branch circuit or rely on a chain of extension cords and power strips. Use listed transformers, power supplies, cords and distribution equipment within their ratings. The Lionel CW-80 Variable Transformer for Track and Accessories 6-14198 is one current example of a transformer designed to power both track and accessories. Keep transformers and power supplies ventilated, place them on a firm surface and do not cover them or enclose them where heat can accumulate. Our guide to O gauge transformer power requirements explains how watts, amps and voltage relate to layout demand.

Every power district should have circuit protection appropriate for the wire and equipment it serves. A correctly sized circuit breaker or fuse interrupts sustained overcurrent before wiring overheats. Install protection near the power source, and do not repeatedly reset a breaker without finding the short circuit, derailment or wiring fault that caused it to trip. A breaker protects against excessive current; it does not replace careful wiring or proper equipment ratings.

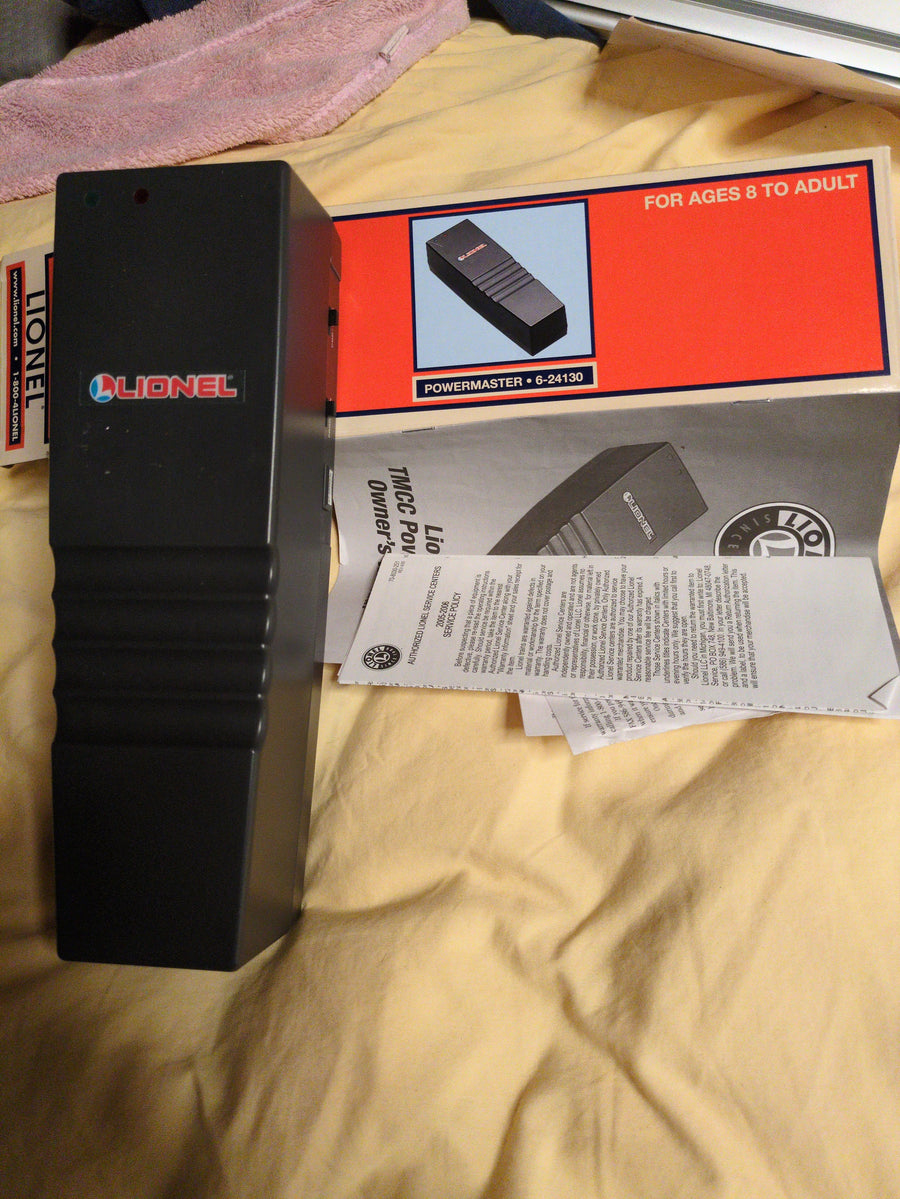

Transient voltage suppression, often called TVS, can help protect control equipment, command bases, receivers and other electronics from brief voltage spikes. In Command Control (TMCC) systems, equipment such as the Lionel TrainMaster PowerMaster TMCC Control System 6-24130 and Lionel TrainMaster (TMCC) Powerhouse Power Supply should still be protected by correctly selected circuit protection and surge suppression. A TVS device must be selected for the circuit voltage, current type and polarity and installed in the correct location. It supplements circuit breakers or fuses rather than replacing them. Follow the equipment manufacturer's instructions or use a qualified technician when the correct device or placement is uncertain.

Smoke generators require special attention in modern command-control environments. Smoke-equipped locomotives and cars, such as the Lionel Western Maryland Shay Steam Locomotive 6-18023 and Lionel Union Pacific Caboose with smoke 6-19706, can continue receiving full track voltage while stopped. In LionChief, TMCC, Legacy and similar systems, do not leave smoke-equipped equipment idling for extended periods with the smoke generator energized at full track power. Reduce or disable smoke when the locomotive or car will remain stationary, use only the recommended smoke fluid and avoid overfilling. Browse current steam locomotives and cabooses, and see our overview of Lionel control ecosystems for additional context on conventional and command operation.

Good wiring hygiene makes faults easier to prevent and easier to diagnose. Use wire large enough for the expected current and distance, maintain consistent color coding, label feeders and power districts and use secure terminal blocks or connectors. Permanent connections should not depend on loosely twisted wire and tape. On Lionel FasTrack layouts, the Lionel FasTrack Terminal Track 6-12016 provides a direct track-power connection; every feeder and terminal should be checked for tight, insulated connections. Provide strain relief where cords can be pulled, use grommets where wire passes through wood or metal and route low-voltage layout wiring separately from household wiring. Our article on wiring Lionel accessories covers practical accessory connections.

Inspect the layout periodically. Look for damaged insulation, loose terminals, pinched cords, foreign material across the rails and connections that become warmer than expected. Clean track and wheels with power disconnected. Keep liquids and combustible materials away from transformers and wiring, supervise children and pets around energized equipment and use a clearly accessible master power switch. Never leave a powered layout unattended.

Unusual heat, a burning odor, buzzing, visible arcing or repeated breaker trips are warnings, not normal operating conditions. Shut the system down, disconnect it from household power and identify the cause before operating again. Manufacturer instructions and local electrical requirements take precedence over general guidance, and household wiring work should be performed by a licensed electrician.
