How Much Transformer Power Does an O Gauge Layout Need? A Practical Guide to Watts, Amps, and Voltage

Summary of This Article

  • Choose transformer capacity according to everything you expect to operate at the same time, not the total number of trains and accessories you own.
  • Voltage determines the operating level. Amperage measures current draw. Watts or volt-amps describe how much total electrical work the power source can supply.
  • A small layout with one train may be comfortable with an 80-watt-class transformer. Two trains, lighted passenger cars, or substantial accessories often justify a larger supply or separate power sources.
  • Allow roughly 25 to 30 percent extra capacity instead of planning to run a transformer continuously at its limit.
  • More transformer capacity does not correct dirty track, loose rail joints, undersized wire, or inadequate feeder connections.
  • Use separate accessory power when practical, and divide larger layouts into protected electrical blocks or power districts.

Choosing power for an O gauge layout sounds simple until the labels start mentioning volts, amps, watts, volt-amps, variable output, fixed output, conventional control, LionChief, TMCC, and Legacy. The practical question is much easier: what will you actually operate at the same time, and can the power system supply it without excessive voltage drop or nuisance shutdowns?

A properly sized transformer helps O gauge locomotives maintain speed, keeps sounds and smoke systems stable, and prevents illuminated passenger cars from dimming every time another train starts. Oversizing alone is not the answer, however. Good track connections, adequate wire, sensible electrical protection, and separate accessory circuits matter just as much.

Voltage, Amps, Watts and Volt-Amps

Voltage is the electrical pressure supplied to the track. Conventional O gauge trains change speed as track voltage rises or falls. Command-controlled and remote-controlled locomotives generally receive steadier track power while electronics inside the locomotive regulate speed.

Amperage is the current the layout draws. A locomotive under load uses current. So do smoke units, sound systems, lighted cars, switches, buildings, signals, and operating accessories. Current demand rises when a locomotive starts, pulls a heavy train, climbs a grade, or encounters mechanical drag.

Watts and volt-amps are practical measures of total power capacity. For rough planning, power is approximately voltage multiplied by current. An 80-watt supply operating near 18 volts represents roughly 4.4 amps of theoretical capacity. A 180-watt supply represents roughly 10 amps at the same voltage. The usable output and protection behavior depend on the actual transformer, so the nameplate and manual remain more important than the arithmetic.

Size the Power Supply for Simultaneous Operation

Do not add up everything stored under the layout. Add up what could be operating together during a normal session. A layout may own twelve locomotives but only run one at a time. Another layout may run two trains continuously while powering eight illuminated cars, several switches and turnouts, and a group of operating accessories. Those layouts need very different power systems.

A practical worksheet should include:

  • Every locomotive that may run at the same time
  • Lighted passenger cars and cabooses
  • Track-powered accessories and operating cars
  • Switch machines, uncoupling sections, signals, and buildings
  • A reserve for startup demand and future additions

Exact current draw varies considerably. A modern efficient locomotive may draw much less than an older postwar engine or a dual-motor locomotive pulling a heavy consist. Incandescent passenger-car lighting usually draws more than LED lighting. Because generic estimates can be wrong in either direction, an ammeter reading under real operating conditions is the best measurement. For planning before measurement is available, use conservative estimates and keep 25 to 30 percent of the rated capacity in reserve.

Two Practical Examples

One Train on a Small Layout

Assume one locomotive draws about 2 amps under normal load and five lighted cars together draw another amp. At 18 volts, that is approximately 54 watts. An 80-watt-class transformer has reasonable headroom for that example, provided accessories are limited and the track wiring is sound. The Lionel CW-80 variable transformer is representative of this general size class and can supply both variable track power and an accessory output.

Two Trains and Lighted Cars

Assume two locomotives draw about 2.5 amps each and eight lighted cars together draw 1.6 amps. Total demand is roughly 6.6 amps, or about 119 watts at 18 volts, before adding accessories or reserve capacity. That example is a poor match for an 80-watt supply. A 180-watt-class power source, separate districts, or more than one protected supply would be more practical.

These examples are planning illustrations, not universal ratings. A locomotive that is dry, mechanically tight, heavily loaded, or equipped with multiple motors may demand substantially more current.

When an 80-Watt Transformer Is Usually Enough

An 80-watt-class transformer is often adequate for a simple loop or modest O gauge track plan running one typical train. It can also work for a temporary floor layout, a small Christmas layout, or a starter railroad where only a few accessories operate intermittently.

It becomes marginal when the layout adds a second train, long strings of illuminated passenger cars, multiple smoke-equipped locomotives, substantial grades, or accessories sharing the same output. A transformer that repeatedly trips its protection device, produces obvious slowing when another load is activated, or must remain near maximum output is telling you that either the electrical load is too high or the layout has excessive resistance.

When to Move to a Larger Supply

A larger power source makes sense when two or more trains will run together, when the layout uses command control with constant track voltage, or when power must be distributed over a physically larger railroad. The Lionel TrainMaster PowerHouse is an example of a fixed-output supply used in command-oriented installations. A fixed-output PowerHouse is not, by itself, a conventional variable-speed transformer. It normally works with the appropriate controller or command equipment.

Older systems may use a Lionel PowerMaster or another controller to regulate conventional locomotives from a command environment. Before combining components, understand what each device actually does: the power supply provides capacity, while the controller regulates or communicates with the train.

Conventional, LionChief, TMCC and Legacy Power

Conventional control normally uses variable AC track voltage. Raise the throttle and the locomotive speeds up; lower it and the locomotive slows. The transformer must provide both the needed voltage range and enough current capacity for the load.

LionChief and Bluetooth locomotives generally use onboard electronics to control speed. They still require adequate track power, but the handheld remote or app commands the locomotive rather than relying only on changing track voltage. Browse current LionChief trains for examples of this operating approach.

TMCC and Legacy command control generally use constant track voltage plus a command signal. Because several locomotives may share a powered district, total current capacity and circuit protection become especially important. The article An Overview of Lionel Control Ecosystems explains the differences among conventional control, LionChief, TMCC, Legacy, and Base3 in more detail.

Should Accessories Use Separate Power?

Usually, yes. Separating accessory power prevents a building, switch machine, uncoupling track, or operating accessory from causing a visible speed change in the train. It also lets accessories operate at the voltage appropriate for them rather than whatever voltage happens to be on the track.

This does not necessarily require a large second transformer. Many accessory circuits use modest continuous power but have brief current surges. The right supply depends on how many accessories can activate together. Maintain correct polarity and common-return practices when systems share a common connection. For a basic explanation, see Wiring Lionel Accessories.

A Bigger Transformer Does Not Force More Current Into a Train

A locomotive draws the current it needs at the voltage supplied. A larger transformer provides more available capacity; it does not automatically force all of that capacity through the locomotive. The real risks are excessive voltage, improper wiring, defeated circuit protection, undersized wire, or a short circuit allowed to continue too long.

More available current makes proper protection more important, not less. Use the transformer’s built-in protection and add correctly sized circuit breakers or fast-acting protection where the system design calls for it. Never bypass protection to stop nuisance trips. Find the overload or wiring fault instead.

Power Districts and Electrical Blocks

A larger layout should not necessarily be fed as one enormous electrical circuit. Dividing the railroad into blocks or power districts makes troubleshooting easier and limits the portion of the layout affected by a derailment or short. Separate districts can be powered by separate supplies or by separate protected outputs from a properly designed system.

Power districts become particularly useful when:

  • Several trains operate independently
  • The layout has long track runs or multiple levels
  • Command-control locomotives share constant-voltage track
  • Yards and sidings need independent shutoff
  • A short in one area should not stop the entire railroad

Do not connect two transformer outputs together unless the equipment and wiring plan specifically support that arrangement. Older transformer phasing practices are not a substitute for a documented multi-supply design.

Feeder Wires Matter as Much as Transformer Size

A powerful transformer connected through one small wire to a large layout can still produce poor performance. Resistance develops through long wire runs, loose rail joints, dirty track, and inadequate lockons. Add feeder wires at sensible intervals and use wire large enough for the current and distance involved.

If a train runs well near the transformer connection but slows at the far side of the layout, the first suspect should be voltage drop, not transformer capacity. Clean connections, tighten track joints, and add feeders before buying a larger power supply. Our comparison of tubular track and FasTrack also explains some practical differences between common track systems.

Symptoms of Inadequate Power or Poor Distribution

  • The train slows noticeably when lights, whistles, switches, or accessories activate.
  • Sound or command electronics reset during acceleration.
  • Passenger-car lights dim as the train moves farther from the feeder.
  • The transformer repeatedly shuts down even though no derailment is visible.
  • Two trains run acceptably alone but poorly when operated together.
  • Track voltage is normal near the transformer and low at distant sections.

Those symptoms do not prove the transformer is undersized. A mechanical problem, dirty wheels, dirty track, a partial short, damaged wiring, or excessive voltage drop can produce similar behavior. Diagnose the layout before replacing equipment.

A Practical Transformer-Sizing Method

  1. List everything that may operate simultaneously.
  2. Use manufacturer current figures when available; otherwise use conservative planning estimates.
  3. Measure actual current under the heaviest normal operating condition when possible.
  4. Convert the expected load to watts or volt-amps and add 25 to 30 percent reserve.
  5. Move steady lighting and accessories to separate supplies when practical.
  6. Divide larger layouts into protected blocks or districts.
  7. Confirm that feeder wire, connectors, and circuit protection match the available current.

This method prevents both common mistakes: buying far more transformer than a small layout needs, or trying to operate a growing railroad from the starter transformer that came with the first set.

Frequently Asked Questions

Can a transformer with too many watts damage my train?

Not merely because it has extra capacity. Damage is more likely from excessive voltage, incorrect connections, inadequate circuit protection, or a short circuit. A larger supply must be paired with appropriate wiring and protection.

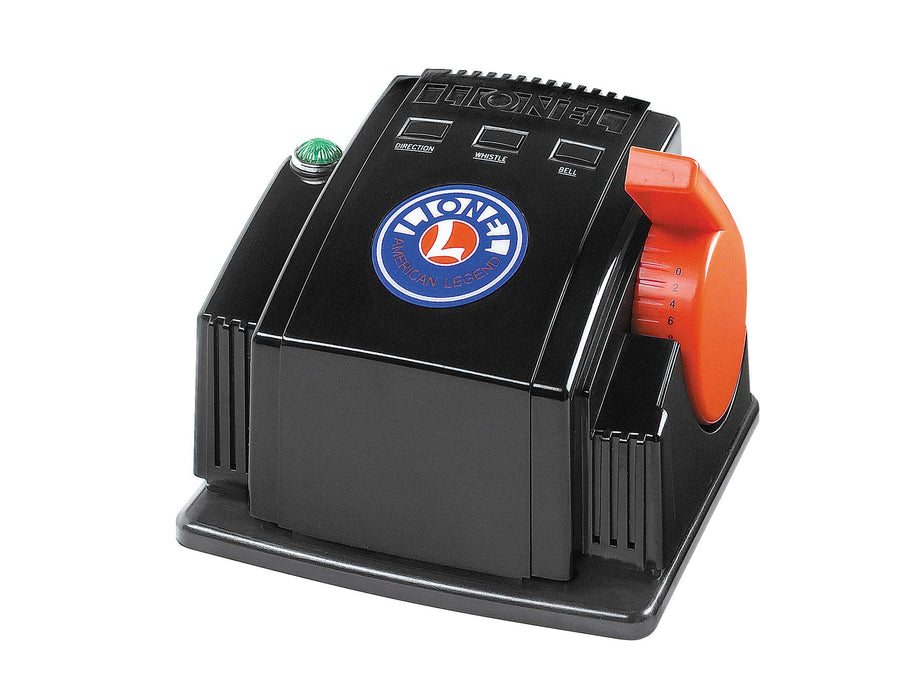

Is a CW-80 enough for an O gauge layout?

It is often enough for one typical train on a modest layout, particularly when accessories are limited or separately powered. It may not be enough for two trains, long illuminated consists, or a substantial accessory load.

Can one transformer power both trains and accessories?

Yes, if it has the correct outputs and enough capacity, but separate accessory power usually produces steadier train operation and better voltage control for the accessories.

Why does my train slow when I activate the whistle or an accessory?

The additional load may be using most of the available capacity, but poor connections or voltage drop can cause the same symptom. Check track, feeders, wiring, and mechanical condition before assuming the transformer is the only problem.

Do command-control layouts need more power?

Not automatically, but command layouts often operate several locomotives on continuously powered track. That makes total simultaneous current, district protection, and power distribution more important.

Bottom Line

For one ordinary train on a compact layout, an 80-watt-class transformer may be entirely adequate. As soon as the plan includes multiple trains, long lighted consists, extensive accessories, or command-control districts, calculate the simultaneous load and design the wiring around it. Buy enough capacity with reasonable reserve, but do not expect transformer size to repair weak feeders, dirty track, or poor connections.

When choosing a train and power system together, start with How to Choose the Right O Gauge Train for Your Layout and Budget. Then match the transformer, controllers, track, and accessories to the railroad you intend to operate rather than the railroad you may someday build.
